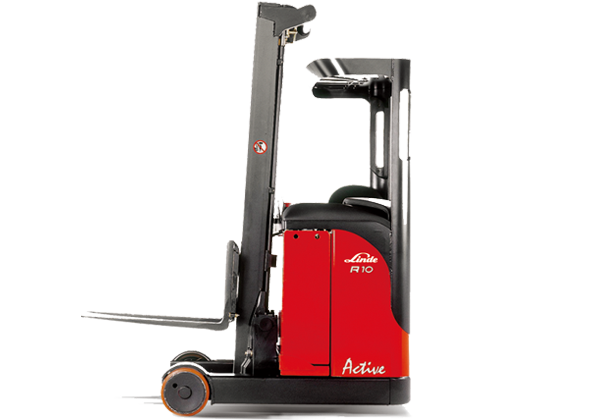

Reach Trucks R10CS-R14CS

Electric Reach Trucks 1.0 - 1.4 t

Characteristics

Safety

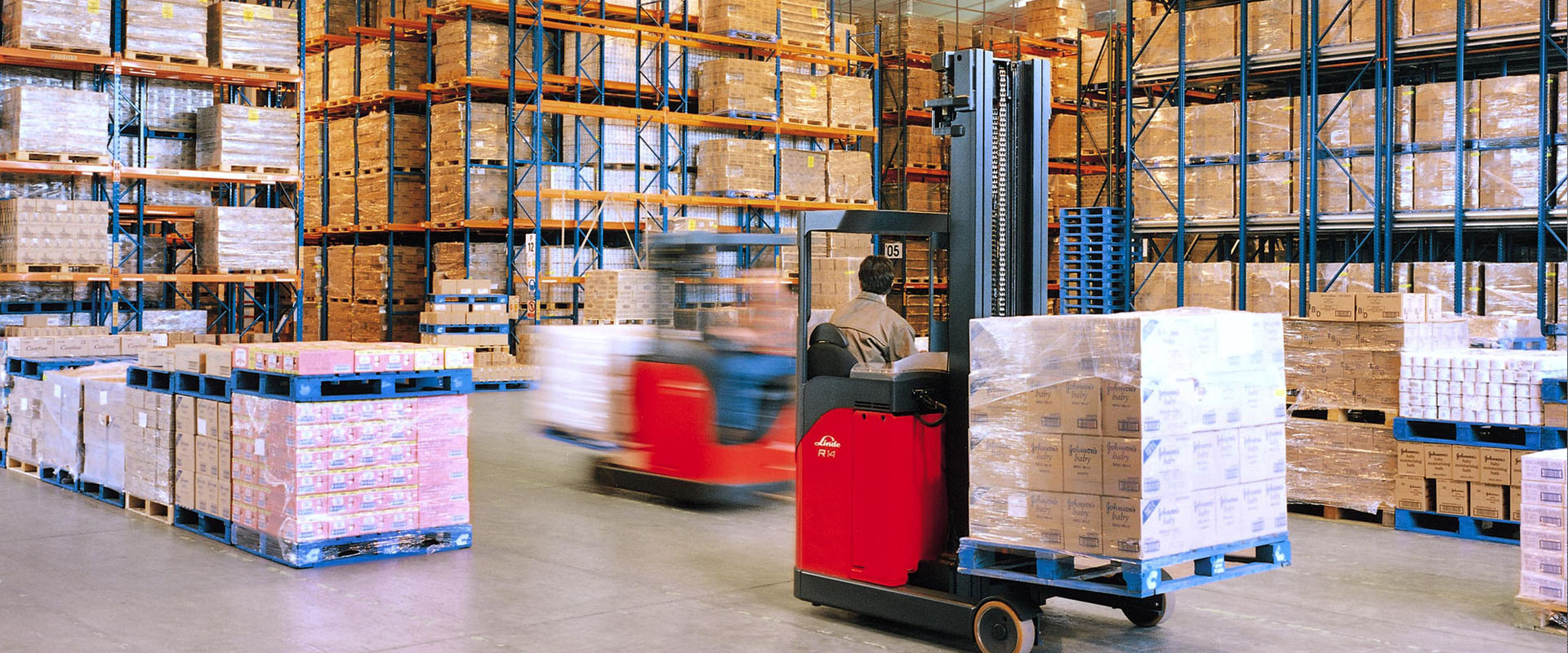

The Linde ACtive ‘C’ range offers compact manoeuvrability in narrow aisle storage and retrieval applications. The ergonomic operator’s compartment provides a comfortable and safe working environment for consistently high levels of efficiency and productivity.

Performance

Comfort

Reliability

Service

Technical Data

		R10CS	R12CS	R12CS
Load capacity	kg	1000	1200	1400
Load center	mm	600	600	600
Service weight	kg	2630	2660	2800
Lift	mm	3650	3650	3650
Turning radius	mm	1435	1435	1538
Travel speed. with/without load	km/h	13.5/13.5	13.5/13.5	13.5/13.5
