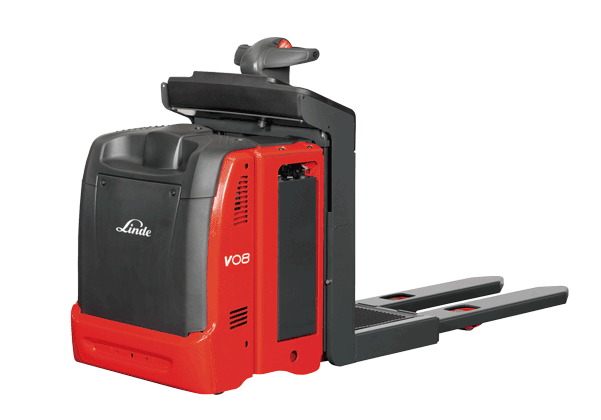

Order Pickers V08-01-V08-02

Low Level Man-up Order Picker 0.7-1.0 t

– V08 models are designed to optimize frequent 1st and 2nd level order picking. Two designs with direct access to the pallet are available to put down picked items regardless of the height of the platform.

Characteristics
Technical Data
Features
Get a Quote

Characteristics

Safety

At the edge of the platform the operator has a perfect grip thanks to a slightly inclined edge for a safe pick. While lifting/lowering the supplementary lift on the V08, both hands are requested for further safety. At no time operator’s body exposed beyond the contours of the truck.

Performance

V08 models are designed to optimize frequent 1st and 2nd level order picking. Two designs with direct access to the pallet are available to put down picked items regardless of the height of the platform. The OptiLift proportional control rises and lowers platform for accurate picking. Lowering of platform can also be controlled by an easy to use foot switch.

Comfort

Low 135 mm step-in height and wide 431 mm entry allows easy and frequent access to the order pickers. On the V08 “Walk out” version, forks are welded to the platform giving the operator a wider direct same-level access. For more comfort, the damped mat is acting as a deadman sensor. While lowering, soft landing of the platform brings further control of the preparation and comfort to the operator.

Reliability

Linde offers 2 versions of order pickers for frequent 1st and 2nd picking level to provide the optimum solution for individual organisation. The central drive wheel guarantees traction as well as straight drive down the aisle and a perfect braking. The V08 „Supplementary lift“ is fitted with robust and adjustable ISO forks for various applications.

Service

Speed and economy continue over into truck diagnosis and preventive maintenance. The digital multifunction instrument display ensures the operator is always well informed. CAN-bus connectivity enables all truck data to be transmitted to a laptop by the service technician. Easy accessibility of all components and maintenance-free AC technology also play an important role in maximising truck uptime.

Technical Data

		V08-01	V08-01	V08-02
Load capacity	kg	1000	700	800
Load centre	mm	600	600	500
Service weight	kg	1299	1380	1550
Lift	mm	1065	1065	1065
Turning radius	mm	1860	1535	1660
Travel speed. with/without load	km/h	10.0/10.0	10.0/10.0	10.0/10.0

Features

Rising platform
Workstation & display
Control & Drive system

– Wide access of 431 mm (V08 “Supplementary lift”) and low step-in height (135 mm)
– OptiLift® system to lift the platform provides fully proportional lifting as well as quiet operation
– Lowering can be controlled by a foot switch
– Soft landing of the forks protects load when lowering

– Numerous storage compartments all around the controls to store picking tools
– Various optional accessories designed to streamline picking.
– Digital multifunction display as standard with hourmeter, maintenance indication, battery discharge indicator
– Truck activated by PIN-code, ignition key or by the innovative biometrical access (optional)

– Proportional power-assisted steering, self-centering and effortless to operate
– Automatic speed reduction when cornering
– Simultaneous driving/lifting action enables fast move in-between two picks
– Traction speed adjustable up to 10 km/h, laden or unladen and 5 km/h with the platform up
– Automatic braking on releasing the travel switch
– Electromagnetic braking initiated by the emergency stop button acts on the drive motor
