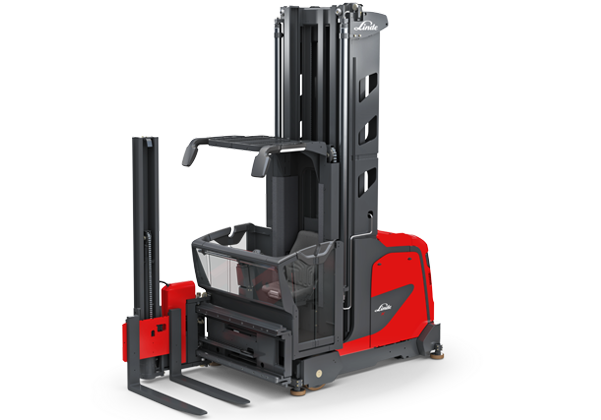

Very Narrow Aisle Trucks K

Very Narrow Aisle Man-Up Trucks 0.5 - 1.5 t

Characteristics

Safety

The K truck offers various systems to offer safe operation for the operator as well as its environment. The personal safety system prevents damage inside the aisle, while the innovative rescue alarm detects unusual operators behavior and attracts attention in emergency cases.

Performance

Comfort

Reliability

Service

Technical Data

		K	K	K	K	K	K	K
Load capacity	kg	500	1000	1150	1300	1300	1500	1500
Load centre	mm	600	600	600	600	600	600	600
Service weight	kg	5983	7220	8886	9804	10097	10087	11842
Lift	mm	4460	9060	10860	13660	14710	13660	17510
Turning radius	mm	1842	1870	2014	2104	2180	2104	2180
Travel speed. with/without load	km/h	9.0/9.0	9.0/9.0	10.5/10.5	10.5/10.5	10.5/10.5	10.5/10.5	12.0/12.0
