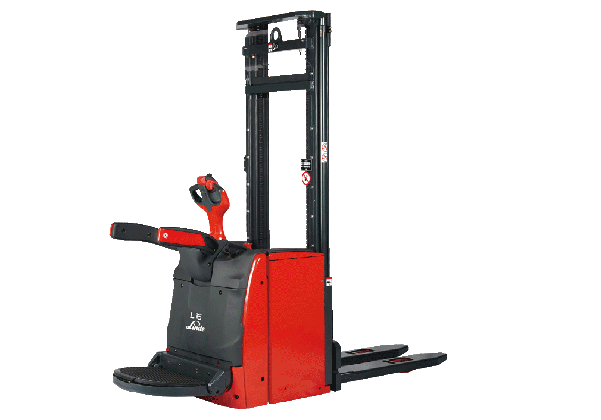

Pallet Stackers L14AP-L20AP
Stand-on Pallet Stacker 1.4, 1.6, 2.0 T
Characteristics
Safety
The Linde pallet stacker is a perfect fit for any stacking application. Only when the tiller in the working position the truck can lift and lower to prevent wrong operation. Traction speed is varied automatously in proportion to the steering angle for maximum safety.
Performance
Comfort
Reliability
Servic
Technical Data
L14AP | L16AP | L20AP | ||
---|---|---|---|---|
Load capacity | kg | 1400 | 1600 | 2000 |
Load center | mm | 600 | 600 | 600 |
Service weight | kg | 1325 | 1325 | 1550 |
Lift | mm | 2924 | 2844 | 2684 |
Turning radius | mm | 1602/1715 | 1602/1715 | 1642/1750 |
Travel speed. with/without load | km/h | 4/4; 6/6; 8/10 | 4/4; 6/6; 8/10 | 4/4; 6/6; 7.5/10 |
