![L-MATIC 12C L-MATIC 12C](/wp-content/uploads/2023/08/tma-1.png)
Linde Robotics L-MATIC 12C
L-MATIC 12C
Characteristics
Safety
Adopting a highly integrated and PLe compliant safety control module, combined with multiple SICK safety scanners, it achieves 360 ° comprehensive safety protection, ensuring that the truck meets the ISO3691-4 safety level and ensures the safety of picking and dropping. Linde robotics can meet the complex working conditions of logistics operations, improve efficiency, and ensure compliance with safety standards.
Performance
Flexibility
Reliability
Service
![](/wp-content/uploads/2023/08/tm-1920x800-1.jpg)
Technical Data
L-MATIC 12C | ||
---|---|---|
Load capacity | kg | 1200 |
Load centre | mm | 600 |
Service weight | kg | 850 |
Lift | mm | 1844 |
Turning radius | mm | 1261/1646 |
Travel speed. with/without load | Km/h | 4/7.2 |
Features
Get a Quote
![](/wp-content/uploads/2023/08/tma-1.png)
L-MATIC 12C

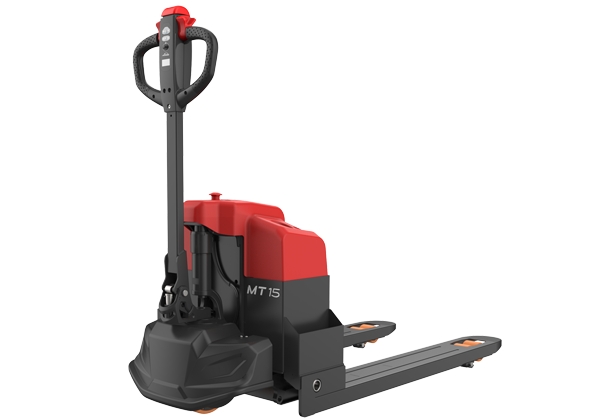

![Electric Pallet Truck 1.5/2.0T Electric Pallet Truck 1.5/2.0T](/wp-content/uploads/2022/06/MT15AD-01-1.png)
Pallet Trucks MT15AD-01- MT20AD-01
Electric Pallet Truck 1.5/2.0T
Characteristics
Safety
Provide a variety of braking modes: belly switch, push down braking of tiller head and emergency button to prevent the truck from hitting the pedestrian in case of emergency and provide safety guarantee
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2022/06/未标题-4-5.jpg)
Technical Data
MT15AD-01 | MT20AD-01 | ||
---|---|---|---|
Capacity | kg | 1500 | 2000 |
Load centre | mm | 600 | 600 |
Service weight | kg | 180 | 185 |
Lift | mm | 115 | 115 |
Turning radius | mm | 1653 | 1655 |
Travel speed. with/without load | km/h | 4.2/4.9 | 4.5/5.5 |
Features
Get a Quote
![](/wp-content/uploads/2022/06/MT15AD-01-1.png)
Electric Pallet Truck 1.5/2.0T
![Electric Pallet Truck 1.5T Electric Pallet Truck 1.5T](/wp-content/uploads/2022/06/mt15a-1.png)
Pallet Trucks MT15A
Electric Pallet Truck 1.5T
Characteristics
Safety
Provide a variety of braking modes: belly switch, push down braking of tiller head and emergency button to prevent the truck from hitting the pedestrian in case of emergency and provide safety guarantee
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2022/06/未标题-4-3.jpg)
Technical Data
MT15A | ||
---|---|---|
Capacity | kg | 1500 |
Load centre | mm | 600 |
Service weight | kg | 190 |
Lift | mm | 115 |
Turning radius | mm | 1450 |
Travel speed. with/without load | km/h | 4.2/4.5 |
Features
GET A QUOTE
![](/wp-content/uploads/2022/06/mt15a-1.png)
Electric Pallet Truck 1.5T
![Electric Pallet Truck 1.5T Electric Pallet Truck 1.5T](/wp-content/uploads/2022/06/MT15AC.png)
Pallet Trucks MT 15AC
Electric Pallet Truck 1.5T
Characteristics
Safety
Long tiller mounted on the low position ensures enough safety distance between the truck and the driver. If the truck is not used for 15 minutes, it will automatically enter sleep mode to avoid accidents and reduce energy consumption
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2022/06/未标题-4-6.jpg)
Technical Data
MT15AC | ||
---|---|---|
Capacity | kg | 1500 |
Load centre | mm | 600 |
Service weight | kg | 180 |
Lift | mm | 115 |
Turning radius | mm | 1464 |
Travel speed. with/without load | km/h | 4.0/4.5 |
Features
Get a Quote
![](/wp-content/uploads/2022/06/MT15AC.png)
Electric Pallet Truck 1.5T
![Towing Tractor 1.3 T Towing Tractor 1.3 T](/wp-content/uploads/2021/12/8903-1.png)
Tow Tractors MP13
Towing Tractor 1.3 T
Characteristics
Safety
The chassis design assures that the operator remains well protected within the truck contours while driving. The ergonomic twin grip steering control incorporates a wrap-around hand guard. For additional safety tractor and load transporter are equipped with knee protection.
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2021/12/未标题-9-1.jpg)
Technical Data
MP13 | ||
---|---|---|
Load capacity | kg | 1300 |
Rated drawbar pull | F (n) | 200 |
Service weight | kg | 98 |
Wheelbase | mm | 315 |
Turning radius | mm | 890/940/980 |
Travel speed. with/without load | km/h | 4/4.5 |
Features
Get a Quote
![](/wp-content/uploads/2021/12/8903-1.png)
Towing Tractor 1.3 T
![Electric Tow Tractor 5.0/6.0 T Electric Tow Tractor 5.0/6.0 T](/wp-content/uploads/2021/12/8906-1.png)
Tow Tractors 8910
Electric Tow Tractor 5.0/6.0 T
Characteristics
Safety
Linde Electric Tow Tractor designed with a heavy-duty steel chassis, and provide 3 independent braking system, Seat safety switch , Emergency button, Regenerative electric braking, High brightness LED design to gives the driver a safety feeling during drive the tractor.
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2021/12/未标题-10-1.jpg)
Technical Data
P50 | P60 | ||
---|---|---|---|
Load capacity | kg | 5000 | 6000 |
Rated drawbar pull | F (n) | 1400 | 1600 |
Service weight | kg | 1190 | 1250 |
Wheelbase | mm | 1005 | 1005 |
Turning radius | mm | 1660 | 1660 |
Travel speed. with/without load | km/h | 7/17 |
Features
Get a Quote
![](/wp-content/uploads/2021/12/8906-1.png)
Electric Tow Tractor 5.0/6.0 T
![REACH TRUCK 1.2-1.5 T REACH TRUCK 1.2-1.5 T](/wp-content/uploads/2021/12/r-1.png)
Reach Trucks 1166-02
REACH TRUCK 1.2-1.5 T
Characteristics
Safety
The Linde new reach truck equipped with fold platform and side guard, as a leading performer in intensive narrow aisle and retrieval applications. Battery discharge protection can cut-off lifting function automatically at low voltage for a longer lifetime.
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2021/12/未标题-8-1.jpg)
Technical Data
MR12AP | MR15AP | ||
---|---|---|---|
Load capacity | kg | 1200 | 1500 |
Load center | mm | 500 | 500 |
Service weight | kg | 1745 | 1880 |
Lift | mm | 3000 | 3000 |
Turning radius | mm | 1597/2018(With platform folded/lowered) | 1697/2118(With platform folded/lowered) |
Travel speed. with/without load | km/h | 5.5/6.0 | 6.0/6.0 |
Features
Get a Quote
![](/wp-content/uploads/2021/12/r-1.png)
REACH TRUCK 1.2-1.5 T
![Electric Pallet Stacker 1.5 T Electric Pallet Stacker 1.5 T](/wp-content/uploads/2021/12/1167-04-1.png)
Pallet Stackers 1167-04 ML15
Electric Pallet Stacker 1.5 T
Characteristics
Safety
Automatic half speed turning function, more smooth in turning. Standard platform switch to prevent mis operation. Battery discharge protection can cut-off lifting function automatically at low voltage for a longer lifetime.
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2021/12/未标题-7-1.jpg)
Technical Data
ML15 | ||
---|---|---|
Load capacity | kg | 1500 |
Load center | mm | 500 |
Service weight | kg | 550 |
Lift | mm | 2430 |
Turning radius | mm | 1392 |
Travel speed. with/without load | km/h | 4.5/4.7 |
Features
Get a Quote
![](/wp-content/uploads/2021/12/1167-04-1.png)
Electric Pallet Stacker 1.5 T
![Electric Pallet Stackers 1.6 T Electric Pallet Stackers 1.6 T](/wp-content/uploads/2021/12/ML16-1.png)
Pallet Stackers ML16AP
Electric Pallet Stackers 1.6 T
Characteristics
Safety
Automatic half speed turning function, more smooth in turning. Standard platform switch to prevent mis operation. Battery discharge protection can cut-off lifting function automatically at low voltage for a longer lifetime.
Performance
Comfort
Reliability
Service
![](/wp-content/uploads/2021/12/未标题-6-1.jpg)
Technical Data
ML16AP | ||
---|---|---|
Load capacity | kg | 1600 |
Load center | mm | 600 |
Service weight | kg | 1240 |
Lift | mm | 950 |
Turning radius | mm | 1730/2090(With platform folded/lowered) |
Travel speed. with/without load | km/h | 5.5/6.0 |
Features
Get a Quote
![](/wp-content/uploads/2021/12/ML16-1.png)
Electric Pallet Stackers 1.6 T

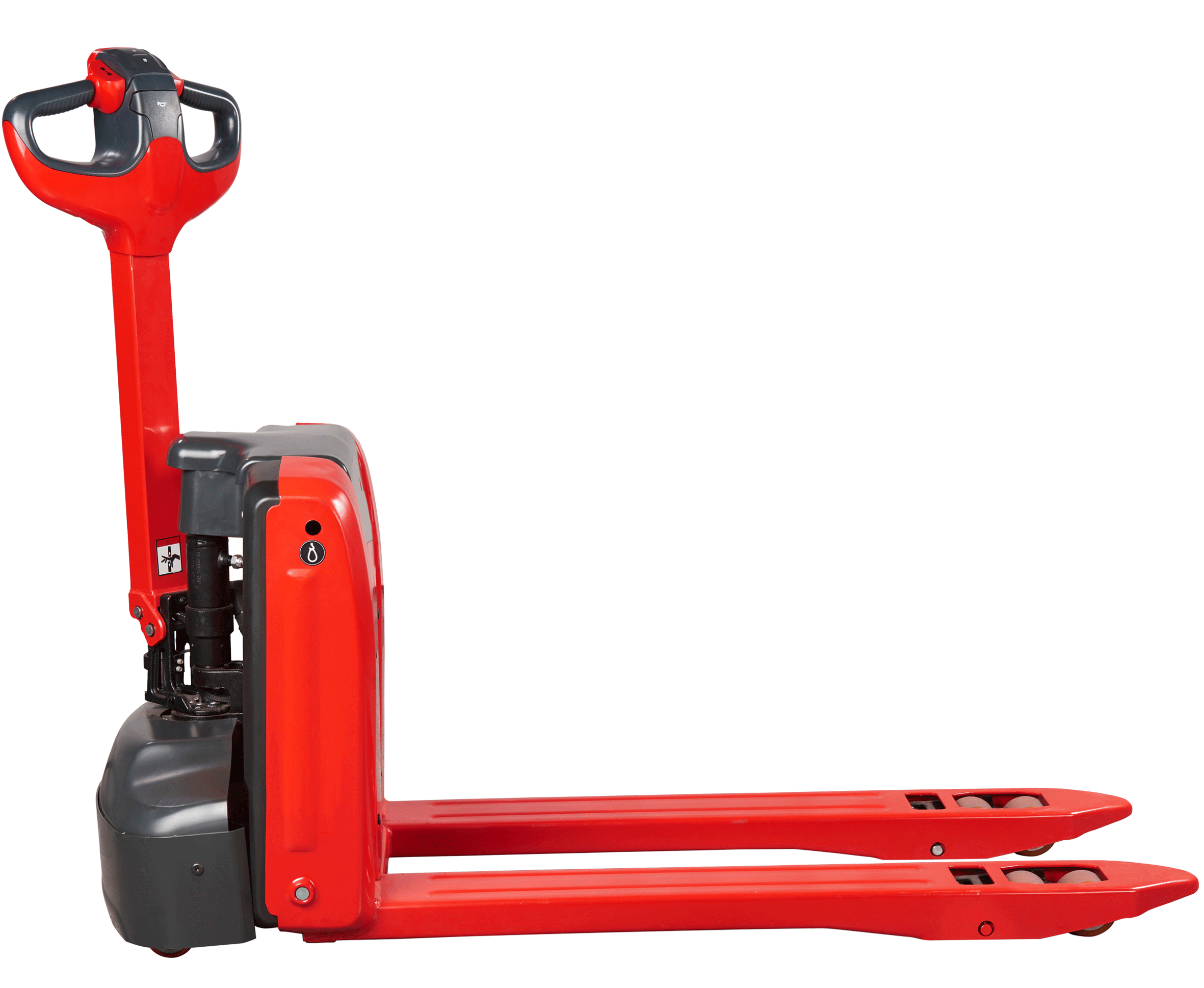

![ELECTRIC PALLET TRUCK 1.6/2.0T ELECTRIC PALLET TRUCK 1.6/2.0T](/wp-content/uploads/2021/12/1133-03-1.png)
Pallet Trucks 1133-03
ELECTRIC PALLET TRUCK 1.6/2.0T
Characteristics
Safety
The truck features an effective parking brake to hold the truck safely on slopes or on lorry tail lifts. Battery discharge protection with automatic lift cut-off function when low battery for higher lifetime. A long, low mounted tiller arm and belly switch places the operator at a safe working distance from the truck.
Performance
Comfort
Reliability
Service

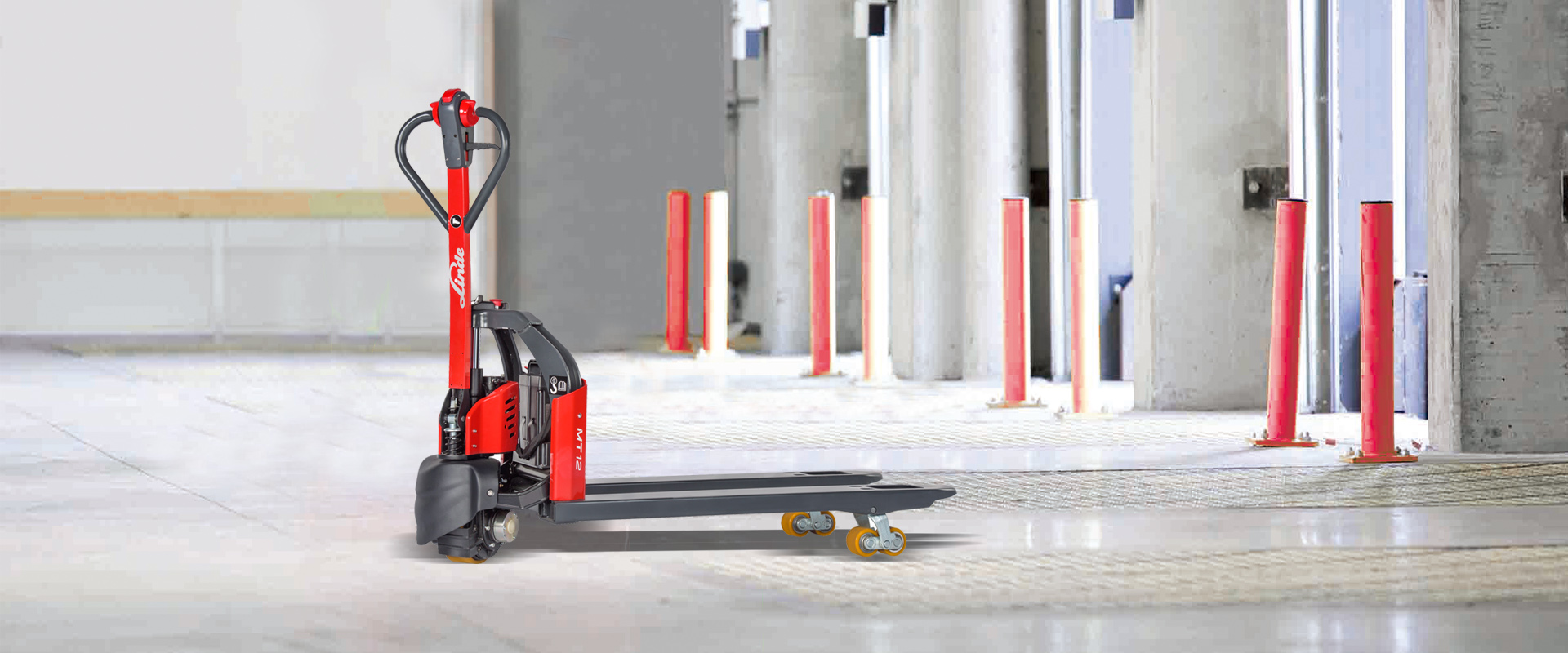

![](/wp-content/uploads/2014/06/未标题-4119.jpg)
Technical Data
MT16 | MT20 | ||
---|---|---|---|
Capacity | kg | 1600 | 2000 |
Load centre | mm | 600 | 600 |
Service weight | kg | 180 | 185 |
Lift | mm | 115 | 115 |
Turning radius | mm | 1390 | 1390 |
Travel speed. with/without load | km/h | 5/5.5 | 5/5.5 |
Features
Get a Quote
![](/wp-content/uploads/2021/12/1133-03-1.png)
